KNOWHOW / PRODUCT COLLECTION

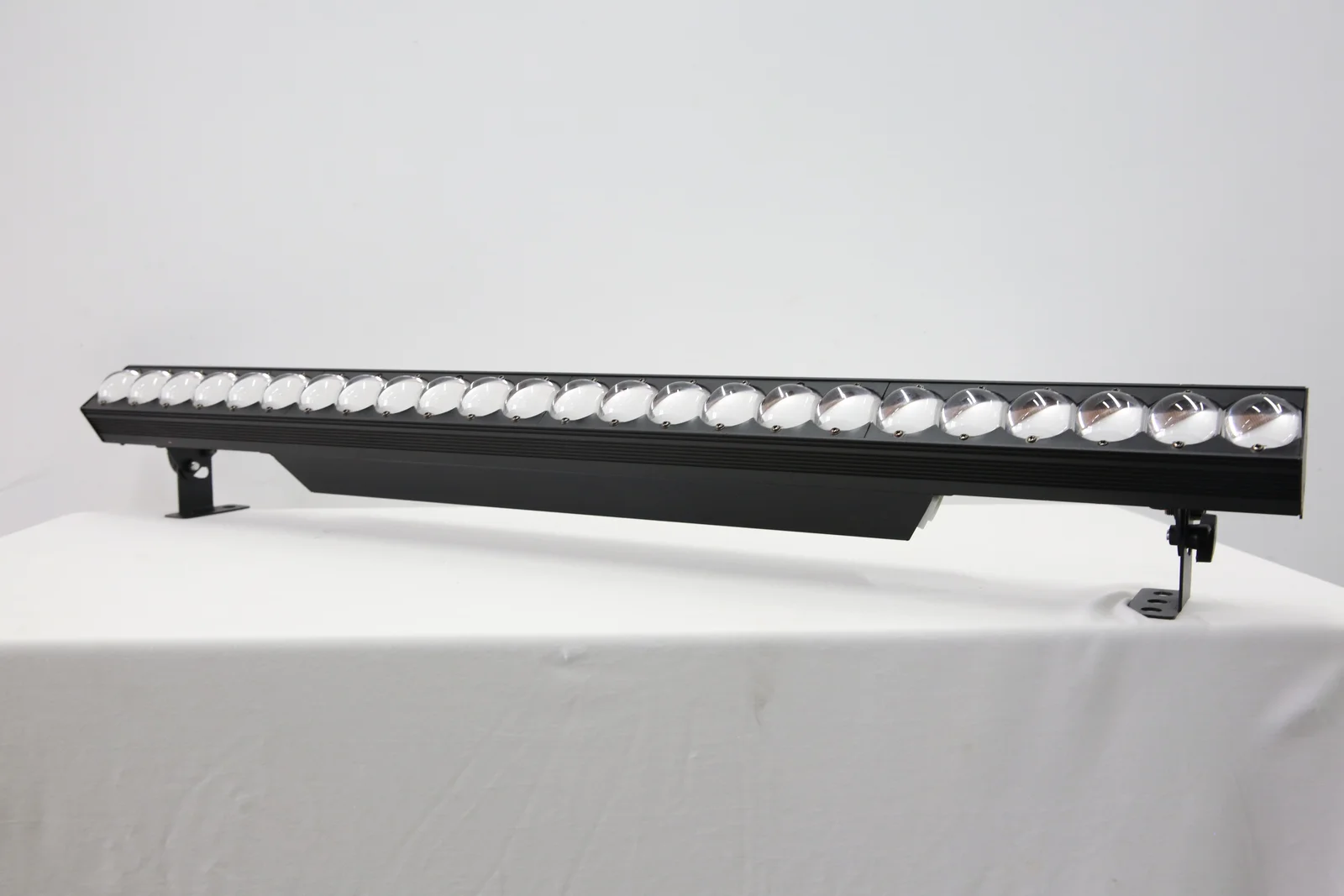

M-245 24-LED 12-segment RGBW light curtain bar
Model: M-245
Explore the specifications below, or contact our team to discuss availability and the right configuration for your project.
Input voltageAC100–240V, 50–60Hz
Rated powerMax 180W
LEDs24 × 12W 5050 RGBW 4-in-1
Product selection · Project support · OEM & ODM
THE DETAILS
Technical specifications
| Input voltage | AC100–240V, 50–60Hz |
|---|---|
| Rated power | Max 180W |
| LEDs | 24 × 12W 5050 RGBW 4-in-1 |
| Pixel control | 12 independent RGBW segments |
| Optics | Independent 1.5° glass focusing lenses |
| DMX channels | 4/6/9/48/50 |
| Dimensions | 1000 × 80 × 160 mm |
| Net weight | 3.5 kg |

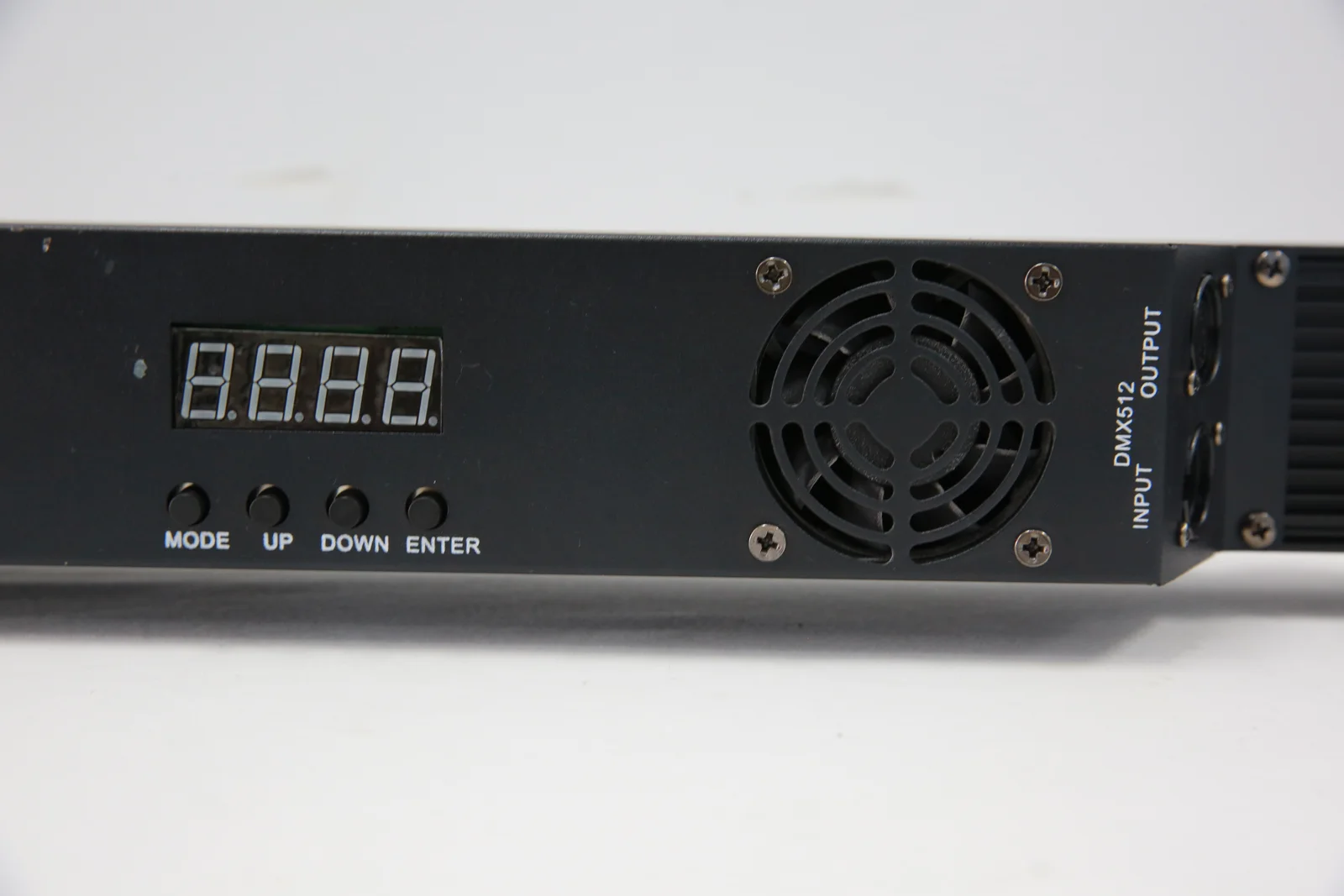

| Control | DMX512, RDM, online firmware upgrade |
Full product description
RGBW light curtain bar with 24 LEDs arranged into 12 independently controlled segments. Uses individual 1.5° glass focusing lenses and supports DMX512, RDM and online firmware upgrades.
