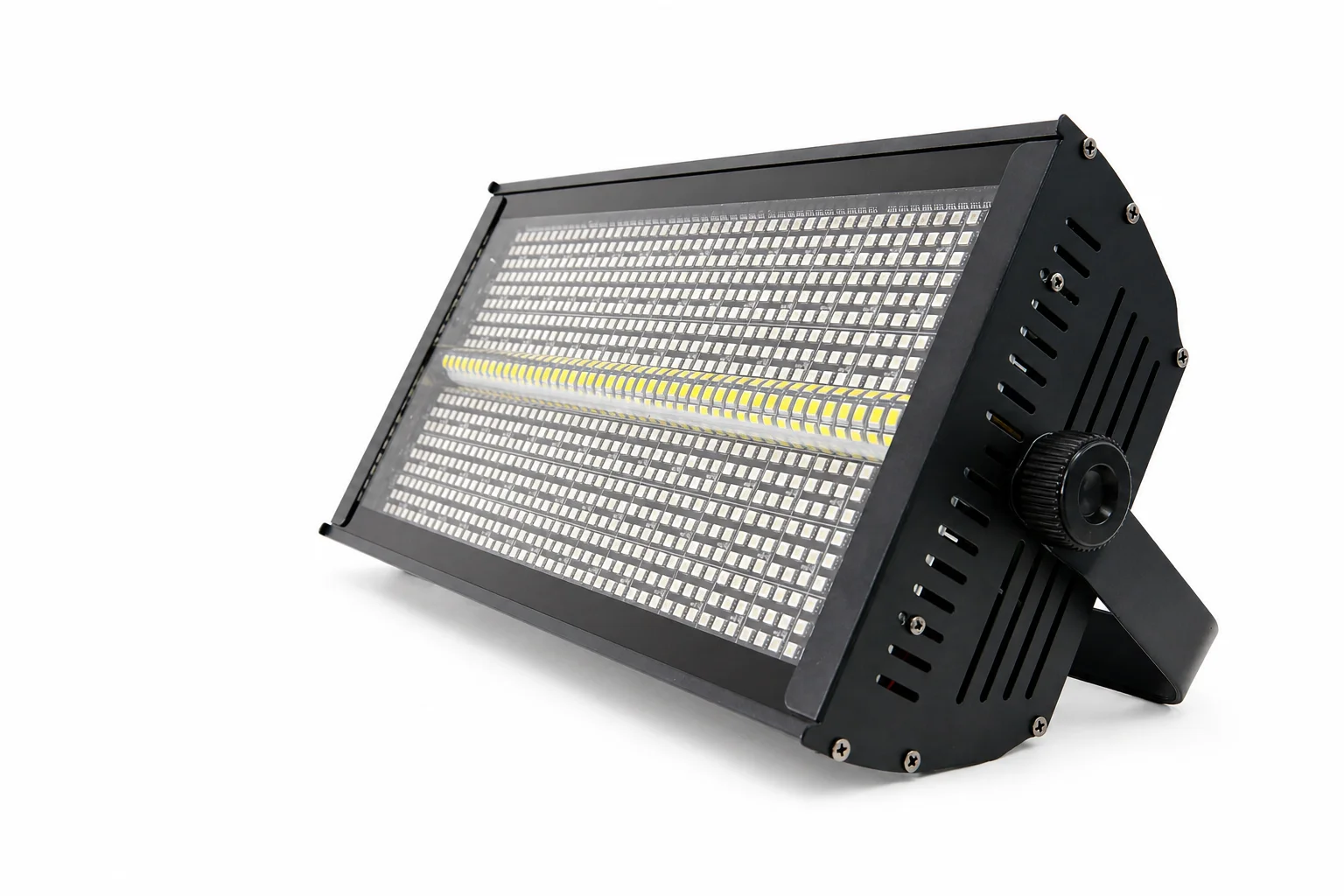

M-810 90 RGB + 30 white segment LED strobe
Model: M-810
Explore the specifications below, or contact our team to discuss availability and the right configuration for your project.
Input voltageAC100–240V, 50–60Hz
Rated power200W
LEDs810 × 0.2W 5050 RGB + 270 × 0.5W 5730 white
Product selection · Project support · OEM & ODM
THE DETAILS
Technical specifications
| Input voltage | AC100–240V, 50–60Hz |
|---|---|
| Rated power | 200W |
| LEDs | 810 × 0.2W 5050 RGB + 270 × 0.5W 5730 white |
| Pixel control | 90 RGB segments + 30 white segments |
| DMX channels | 4/12/15/21/300/321 |
| Dimensions | 450 × 100 × 210 mm |
| Net weight | 3.1 kg |
| Environment | Indoor |

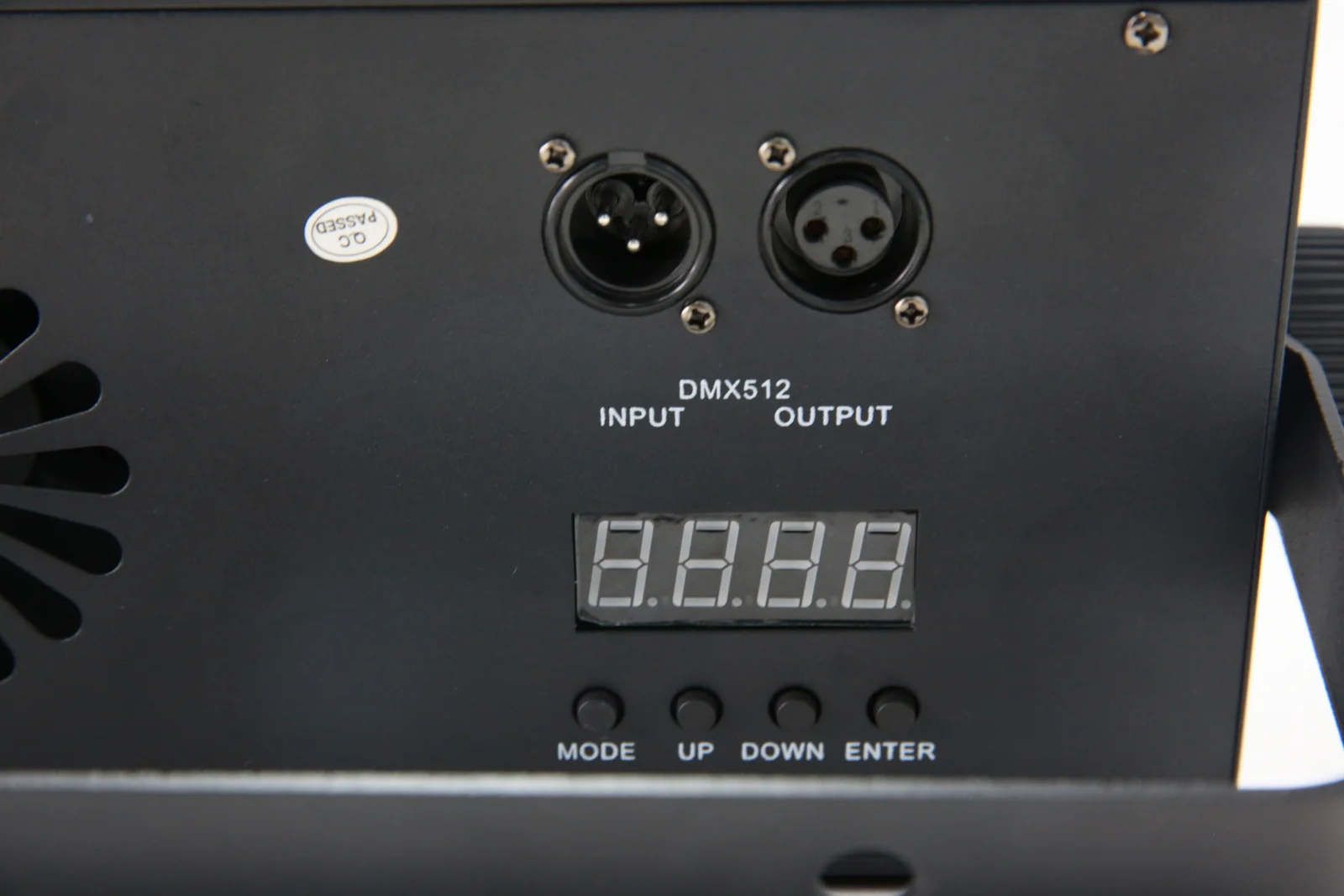

| Control | DMX512, RDM, online firmware upgrade |
Full product description
Indoor LED strobe with 90 RGB segments and 30 white segments. Supports DMX512, RDM and online firmware upgrades, with DMX modes up to 321 channels.
