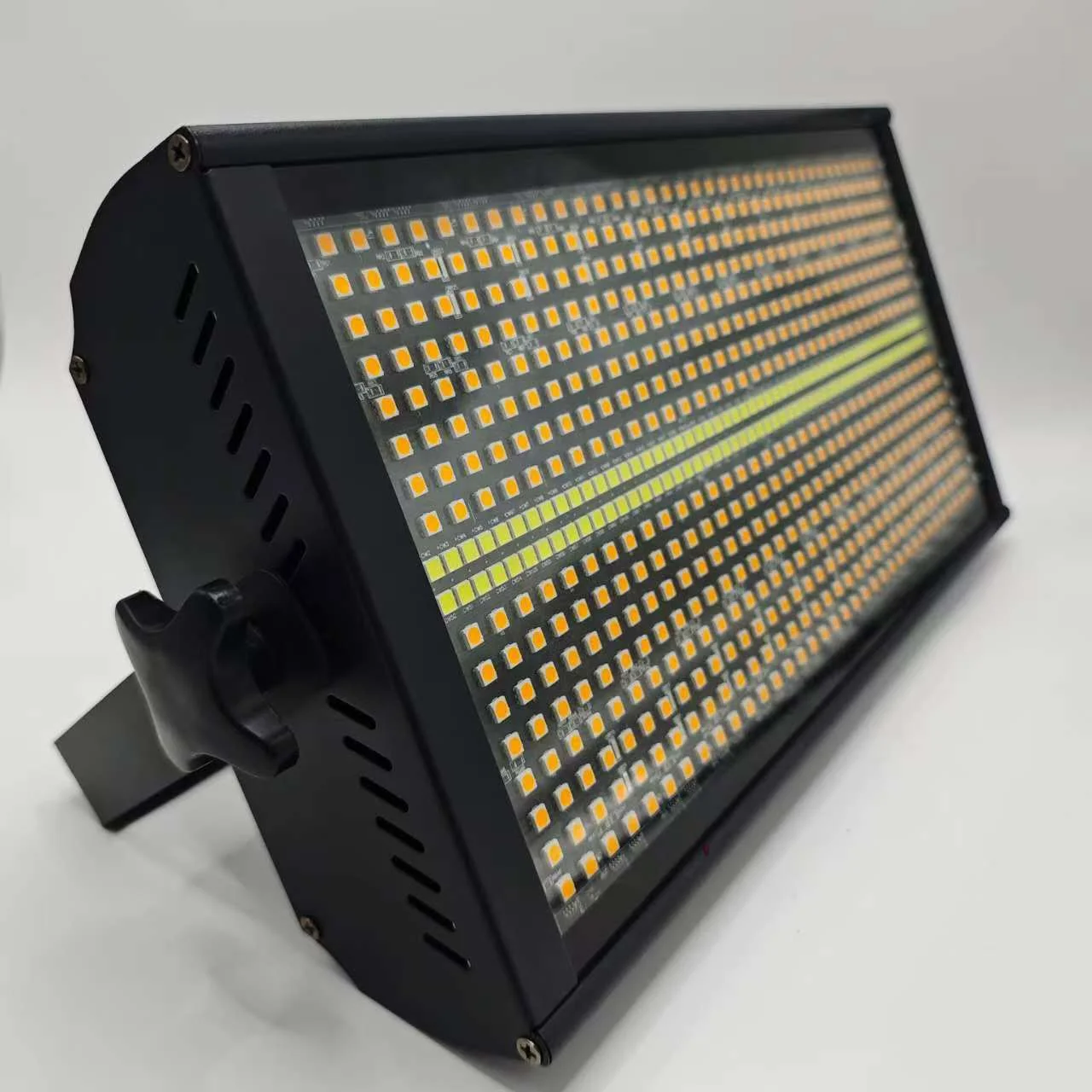

M-688 RGB and amber LED strobe panel
Model: M-688
Explore the specifications below, or contact our team to discuss availability and the right configuration for your project.
Input voltageAC100–240V, 50–60Hz
LEDs576 × 0.2W 5050 RGB + 112 × 0.75W 5054 amber
Beam angle120°
Product selection · Project support · OEM & ODM
THE DETAILS
Technical specifications
| Input voltage | AC100–240V, 50–60Hz |
|---|---|
| LEDs | 576 × 0.2W 5050 RGB + 112 × 0.75W 5054 amber |
| Beam angle | 120° |
| DMX channels | 4/6/12/144/154 |
| Dimming | 0–100% linear |
| Environment | Indoor |
| Dimensions | 445 × 210 × 170 mm |
| Net weight | 2.8 kg |
Full product description

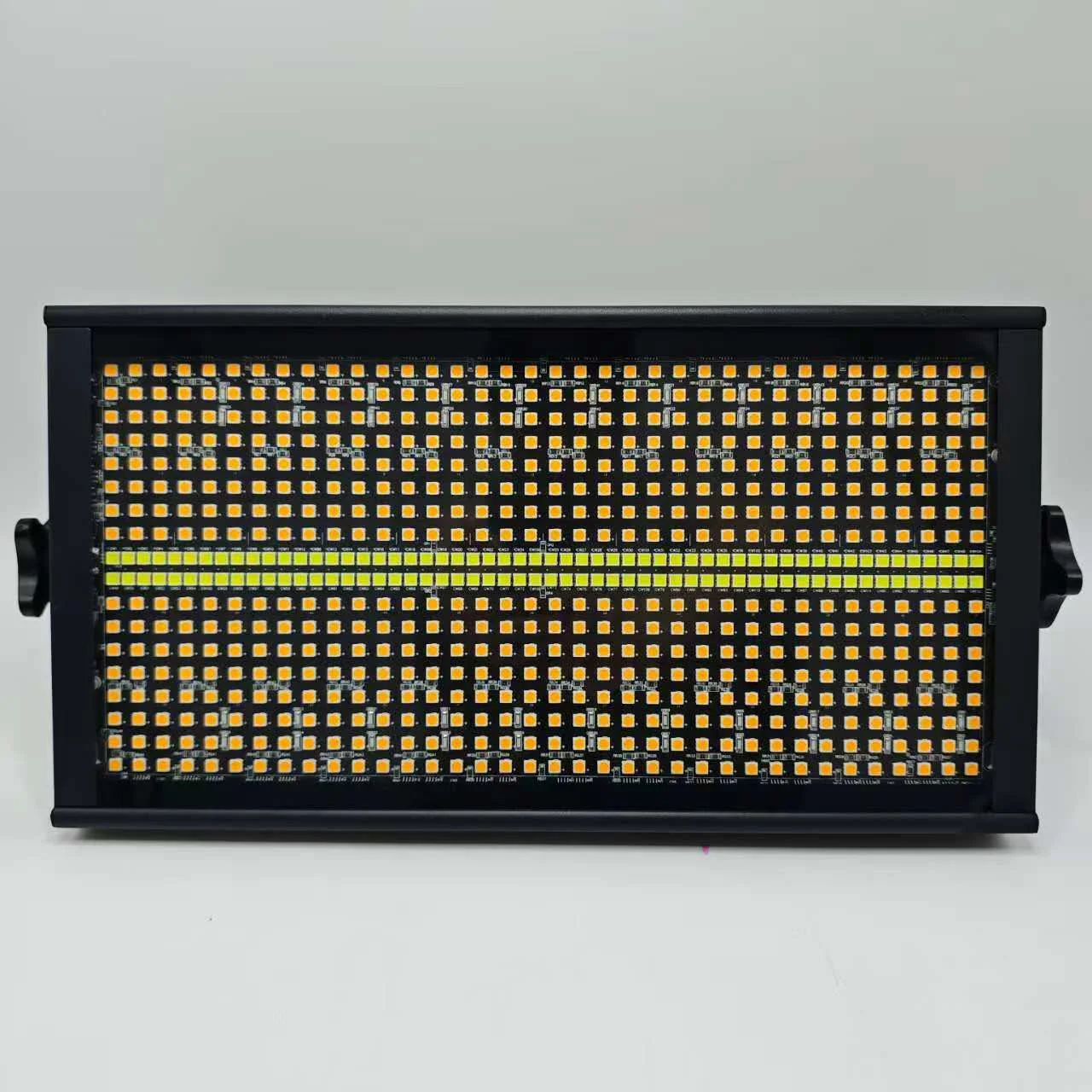

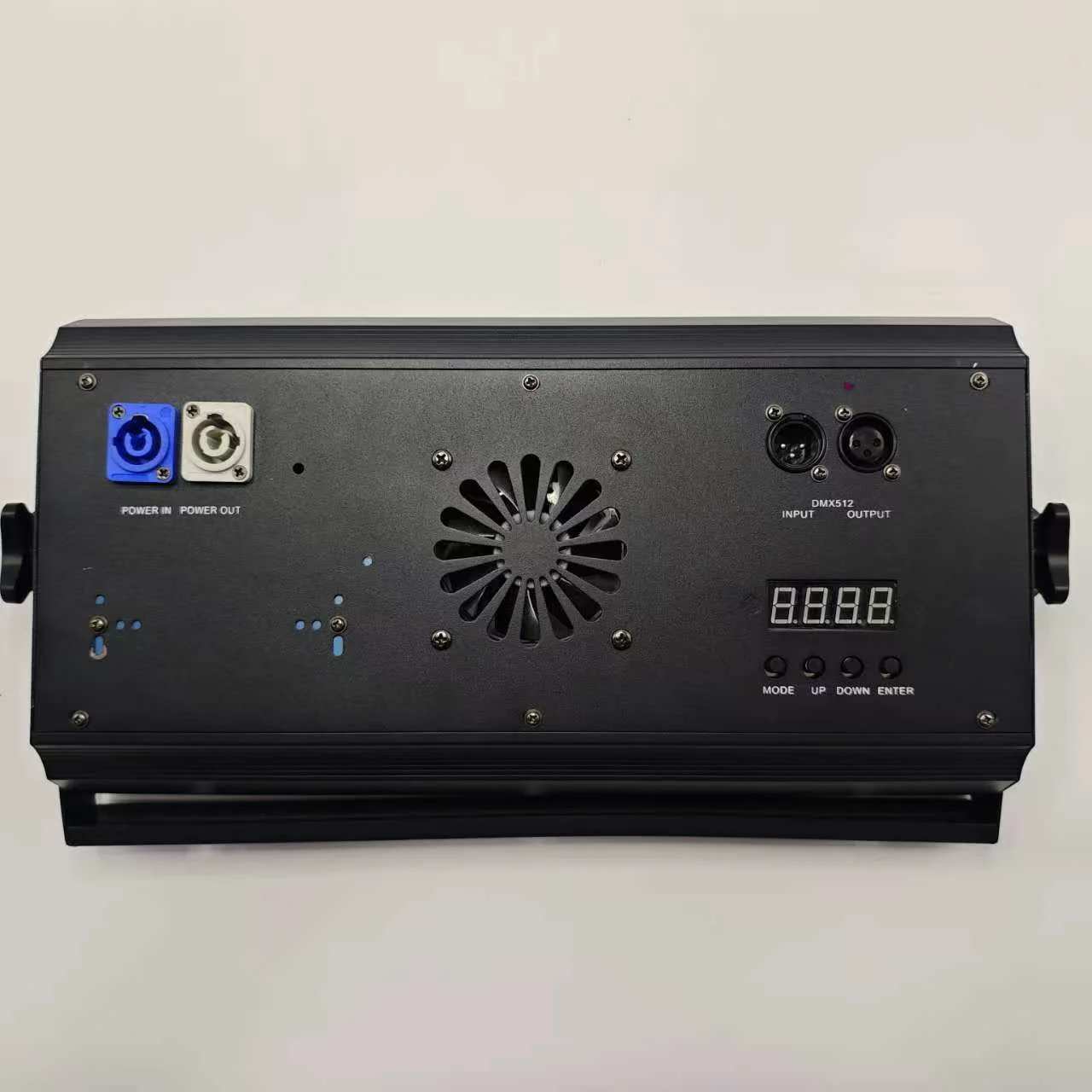

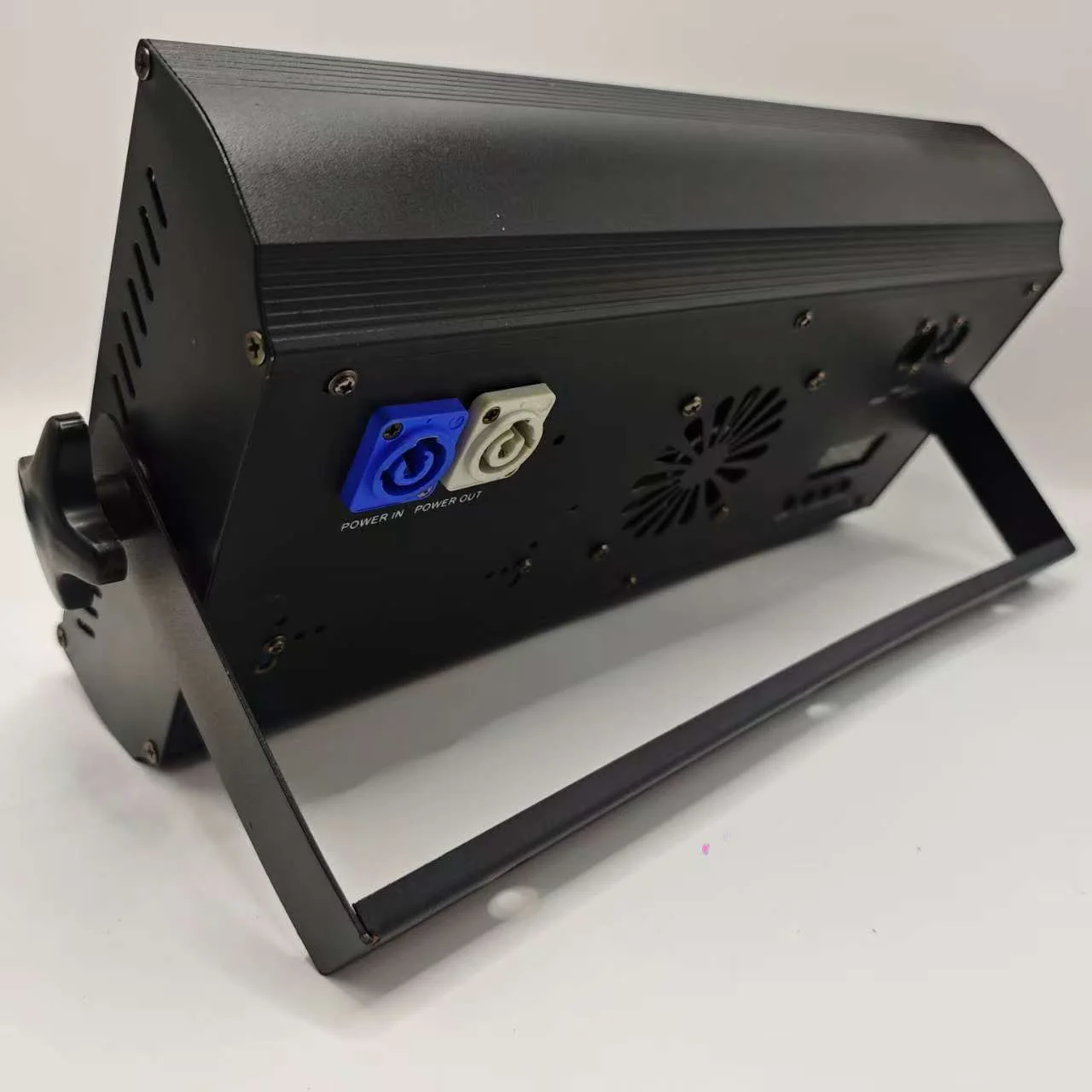

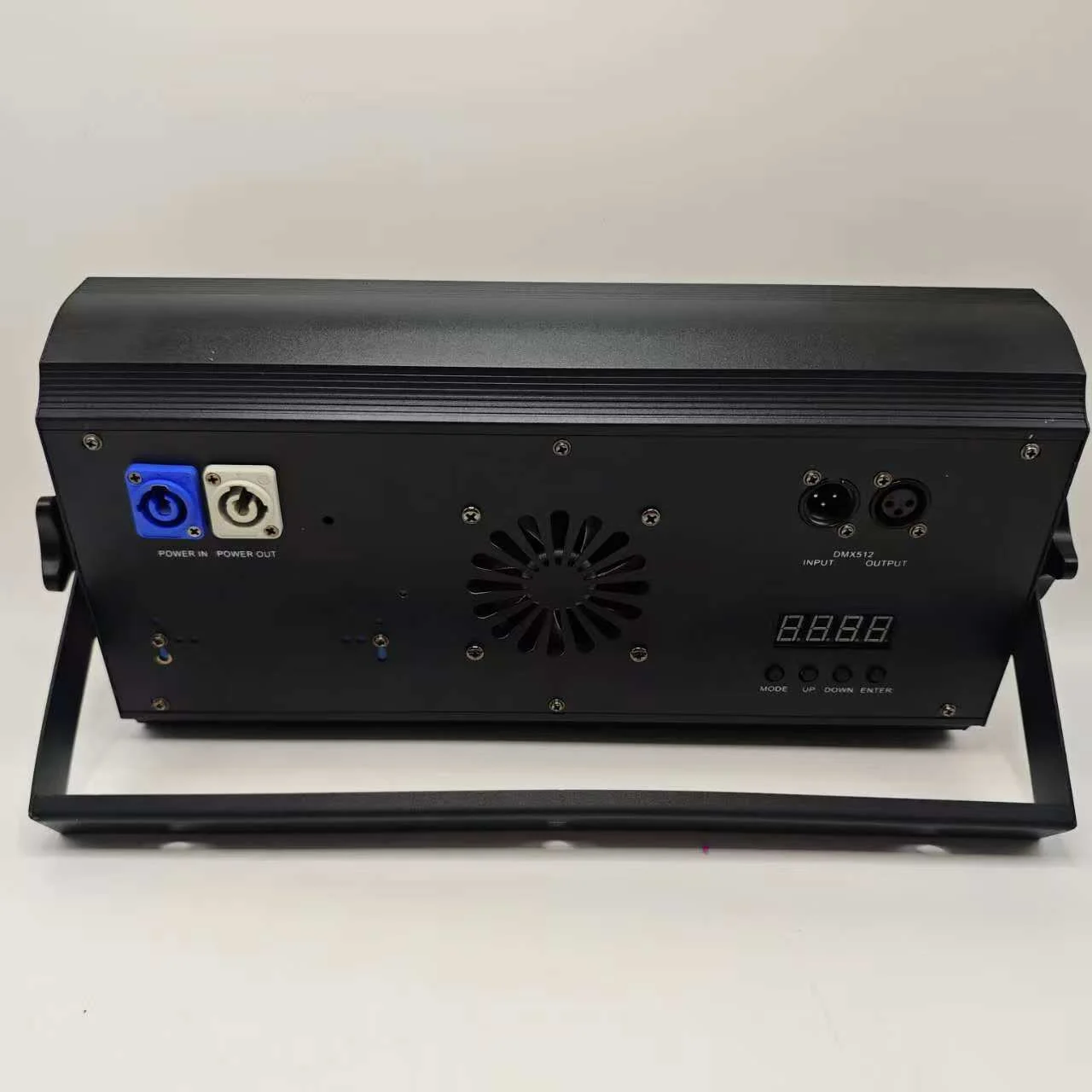

LED strobe panel with RGB and amber LEDs, a 120° beam angle and five DMX channel modes. A rear display and adjustable bracket provide control and mounting options.
